Description

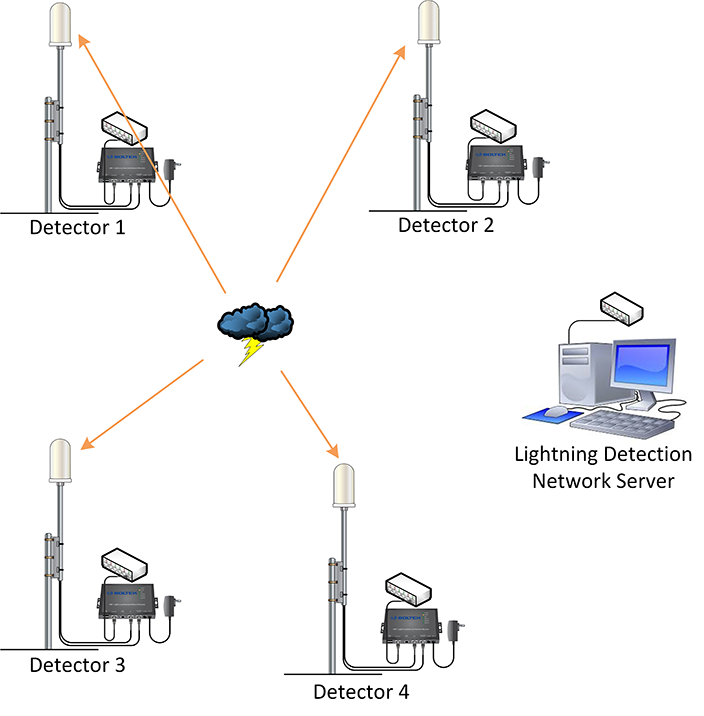

The LRX-1 Lightning Network Detector allows users to create a lightning detection network. In the standard configuration, data from multiple distributed lightning detectors is sent over the internet to a central server for processing. Once the exact strike location is calculated the data is both stored in a database on the server and sent back over the internet to live display clients. Static and animated lightning maps can also be created for display on a web site.
Features
High accuracy timing GPS and signal capture Can be configured with up to three independant servers Remote administration and firmware updates Weatherproof and UV resistant sensor Does not require a PC for data transmission.
 |
 |
Parts Included

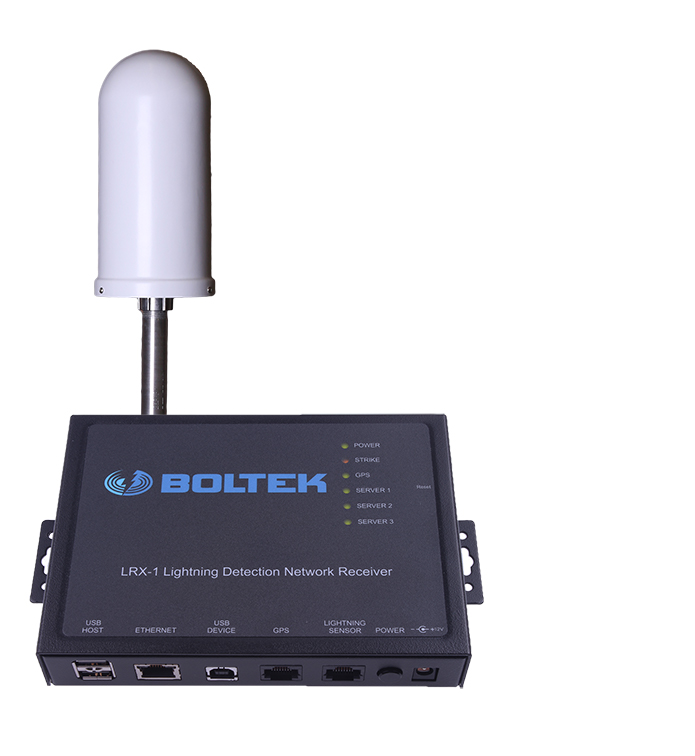

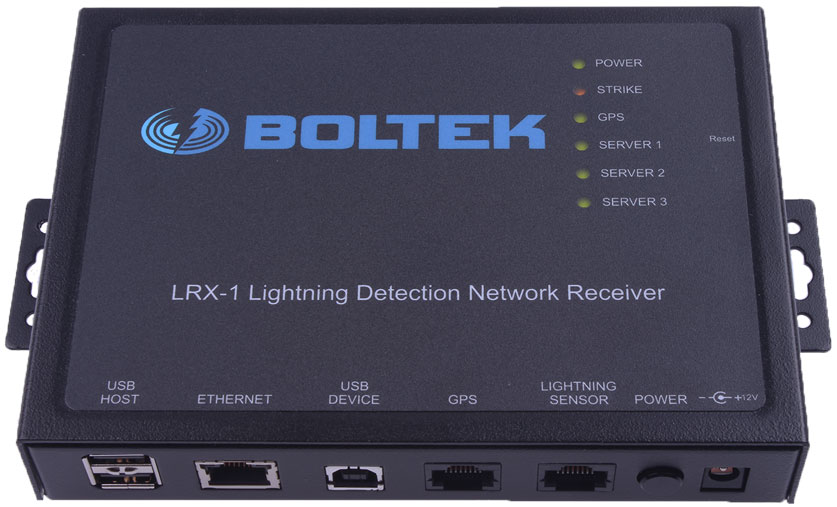

- LRX-1 Lightning Network Detector
- ANT-50 Lightning Sensor / GPS
- Pole Mount Bracket / Mast for ANT-50
- 120VAC or 100-240VAC Power Supply

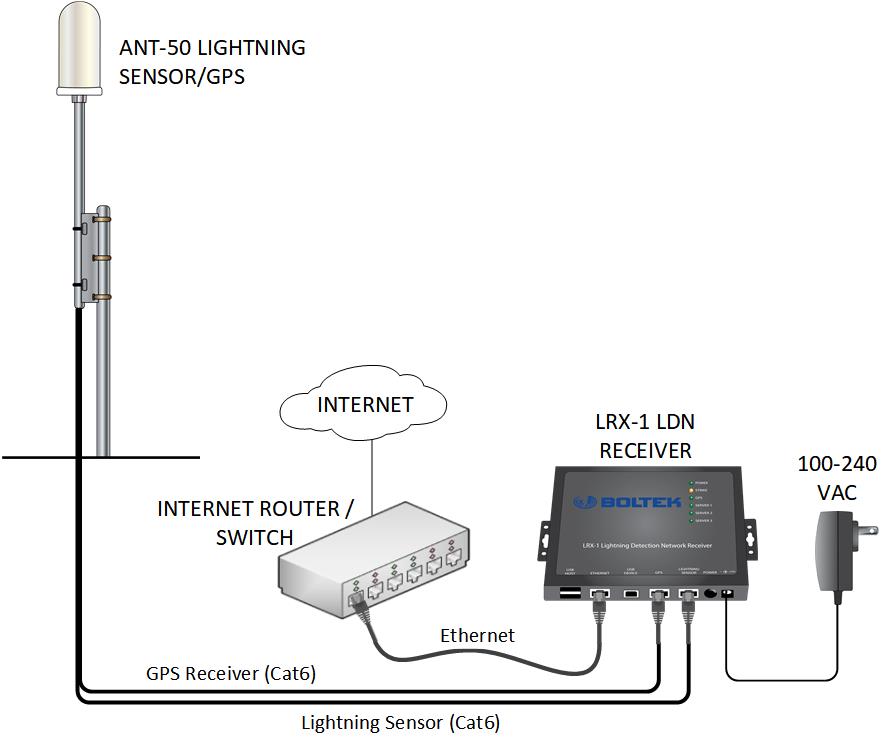

- 100Ft (30m) CAT5 Cable for ANT-50 Lightning Sensor
- 100Ft (30m) CAT5 Cable for ANT-50 GPS
- 6Ft (1.8m) CAT5 Cable for Network
